B-hPDE3B mice
C57BL/6JNifdc-Pde3btm1(PDE3B)Bcgen/Bcgen • 114590

B-hPDE3B mice

Catalog Number
114590
Strain Name
C57BL/6JNifdc-Pde3btm1(PDE3B)Bcgen/Bcgen
Strain Background
C57BL/6JNifdc
NCBI gene ID
5140 (Human)
Aliases
HcGIP1, cGIPDE1

在此页面上

  • Description
  • Targeting strategy
  • Phenotypic analysis

海报

查看全部

    发表文章

      Description

      PDE3B: A key regulator of cAMP/cGMP signaling in metabolic and cardiovascular health

      •  Gene Information: PDE3B encodes phosphodiesterase 3B, an enzyme that hydrolyzes cyclic AMP (cAMP) and cyclic GMP (cGMP), with a higher affinity for cAMP. It plays a critical role in maintaining intracellular cyclic nucleotide levels and regulating key physiological processes, including insulin signaling, lipolysis, and cardiac function.
      • Protein Expression: PDE3B is mainly expressed in adipose tissue.
      • Signaling Pathway: PDE3B activation enhances cAMP hydrolysis to suppress catecholamine-induced lipolysis via the PKA–HSL/perilipin pathway, while insulin activates PDE3B through the IRS–PI3K–PKB/AKT signaling cascade to regulate cAMP levels, glucose uptake, and lipogenesis.
      • Therapeutic Method:  By inhibiting PDE3, these drugs effectively increase the intracellular concentrations of cAMP, leading to enhanced signaling and subsequent physiological effects.
      Targeting strategy

      PDE3B

      •  A CDS that encodes human PDE3B followed by 3’UTR STOP is inserted right after mouse Pde3b ATG to replace the first coding exon of the mouse Pde3b gene.
      • The human PDE3B protein expression will be driven by the mouse endogenous promoter.
      •  The mouse Pde3b gene transcription and translation will be disrupted.

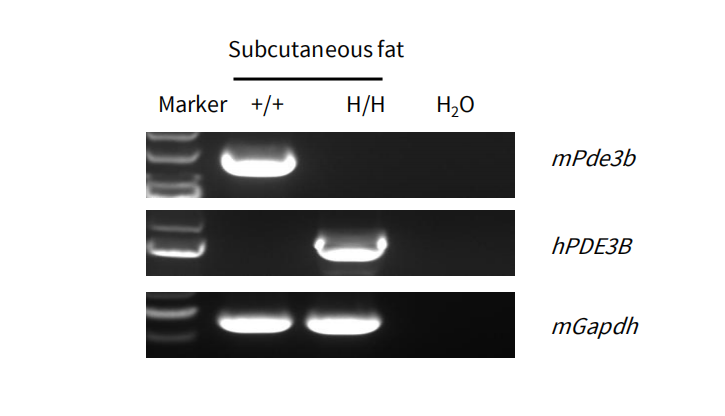

      PDE3B mRNA Expression by RT-PCR

      Strain specific analysis of PDE3B mRNA expression in wild-type C57BL/6JNifdc mice and homozygous B-hPDE3B mice by RT-PCR. Subcutaneous fat and brown fat RNA were isolated from wild-type C57BL/6JNifdc mice (+/+) and homozygous B-hPDE3B mice (H/H), then cDNA libraries were synthesized by reverse transcription, followed by PCR with mouse or human PDE3B primers. Human PDE3B mRNA was detectable only in homozygous B-hPDE3B mice but not in wild-type mice. Mouse Pde3b mRNA was only detectable in wild-type mice.

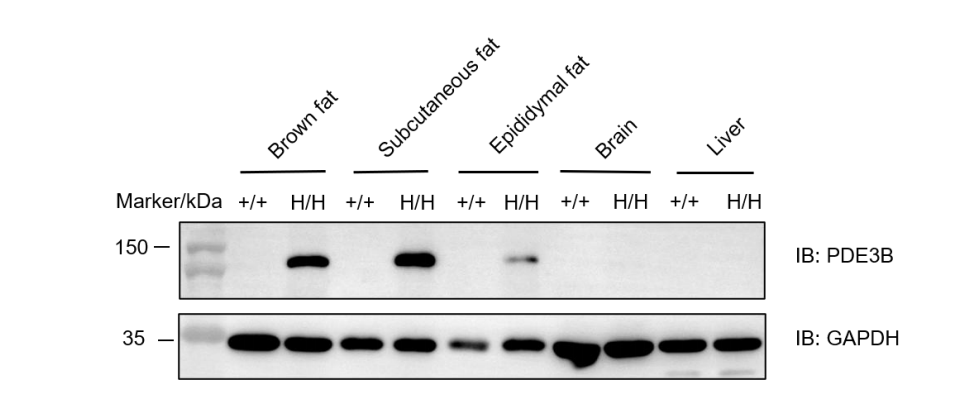

      PDE3B Protein Expression Analysis

      Western blot analysis of PDE3B protein expression in homozygous B-hPDE3B mice. Various tissue lysates were collected from wild-type C57BL/6JNifdc mice (+/+) and homozygous B-hPDE3B mice (H/H), and then analyzed by western blot with anti-PDE3B antibody (Abcam, ab317026). 40 μg total proteins were loaded for western blotting analysis. Human PDE3B protein was only detectable in homozygous B-hPDE3B mice.

      * When publishing results obtained using this animal model, please acknowledge the source as follows: The animal model [B-hPDE3B mice] (Cat# 114590) was purchased from Biocytogen.
